Xtool Anyscan

Analysis By Mobexer

Xtool Anyscan is the kind of Android app that makes sense when you already have, or plan to use, compatible XTOOL diagnostic hardware with a vehicle. I approached it as a practical workshop companion rather than a general car-information app, and that distinction matters. Its purpose is to help technicians and confident DIY owners work with an OBD diagnostic tool, read vehicle information, and investigate faults from a mobile device.

My overall impression is positive, but conditional. The app is free, aimed at Everyone, and has built a respectable audience with over one hundred thousand installs. It holds a 4.0 average from around eight hundred ratings, which feels consistent with an app that can be very useful when the scanner, vehicle, phone, and connection are all cooperating, yet frustrating when one part of that chain is misunderstood.

Getting past the first points of friction

The biggest mistake is to treat this as a standalone fault-code reader. The app is the interface; the diagnostic hardware and the vehicle provide the actual connection to the car. If you install it expecting immediate results without a compatible XTOOL device nearby, the first experience will feel incomplete rather than helpful.

I would begin by checking the physical side before blaming the software. Make sure the diagnostic connector is seated properly, the vehicle has sufficient battery power, and the ignition state matches what the scanner expects during a session. A loose connector or a car that is not fully awake can look exactly like an app failure to someone who is new to vehicle diagnostics.

Phone compatibility is another sensible first check. The app requires Android 7.0 or later, so an older phone may be the real obstacle. On a supported device, I would also close other apps, keep the phone close to the diagnostic equipment, and avoid starting a scan while the vehicle is being switched repeatedly between accessory, ignition, and off positions.

That preparation sounds basic, but it prevents a common false diagnosis: assuming the app is broken because the car was not in the right state. Automotive electronics are not as forgiving as a normal Bluetooth accessory. Some vehicles take a moment to wake their control modules, and some diagnostic operations are more sensitive to voltage or ignition status than a simple code read.

What to check before the first scan

My preferred setup routine is deliberately boring. I install the current release, which is version 4.40.61, confirm that the phone runs a supported Android version, connect the XTOOL device firmly, and then turn the ignition on without immediately starting the engine unless the workflow calls for it. I keep the phone unlocked and watch for a clear connection state before moving deeper into the app.

If the app does not find the device, I would not repeatedly tap scan in the hope that persistence will fix it. Instead, I would disconnect and reconnect the hardware, restart the app, and check whether the vehicle itself has power. If the phone has recently been connected to several accessories, clearing that confusion by temporarily closing unrelated connection tools can also make the next attempt easier to understand.

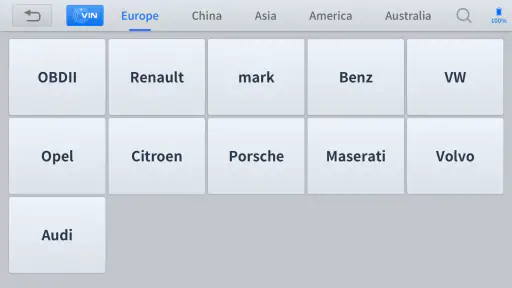

A useful habit is to record the vehicle details before beginning. Write down the make, model, engine variant, and model year as accurately as possible. Selecting a nearby but incorrect vehicle configuration can lead to missing modules or confusing menus, even when the hardware connection is fine. This is one of those workflow details that a short store description cannot teach, but it can save considerable time in a driveway.

I also recommend taking a screenshot or note of the original warning-light state before clearing anything. A diagnostic session should begin with evidence, not with the urge to make the dashboard look clean. If a code disappears after clearing, that does not prove the underlying issue has been repaired. Keeping the initial result gives you something to compare after a repair or after another drive.

How I would use it in an everyday situation

Imagine a check-engine light appears on the way home. I would park safely, let the car settle, connect the XTOOL diagnostic device, and use the app to identify what the vehicle is reporting. I would then write down the code and any accompanying description before deciding what to do next. If the result points toward a loose connection or an issue that has already been repaired, I might clear the code only after preserving the original information.

That sequence is more valuable than simply pressing a clear button. It separates three questions: what the car reported, whether the fault is currently active, and whether the repair actually solved it. For a DIY owner, this can turn a vague warning light into a more organized conversation with a mechanic. For a technician, it creates a repeatable starting point before inspection or further testing.

There is also a practical trade-off here. A mobile diagnostic workflow is convenient because the phone is already familiar, but it can encourage rushed decisions. A code is a clue, not a complete diagnosis. I would never replace a proper inspection with an app result, especially when the vehicle has braking, steering, overheating, fuel, or electrical symptoms that could make continued driving unsafe.

Recovering when a session goes wrong

Connection failures are easier to solve when you change one thing at a time. If the app stops responding during a session, I would first note what was already completed, then exit the current screen rather than immediately changing vehicle settings. After that, I would restart the app, reconnect the diagnostic hardware, and repeat the connection process with the ignition in the same state used at the beginning.

When a scan appears incomplete, I would avoid assuming that every control module has failed. Some vehicles expose different systems depending on the selected vehicle profile, ignition condition, and available communication path. Rechecking the vehicle selection and repeating the scan after a clean reconnection is more useful than interpreting an empty result as proof that the car has no fault.

Another good recovery tactic is to separate reading from clearing. First obtain and save the information. Only then consider clearing codes, and only when you understand why you are doing it. If the warning returns immediately, that is useful evidence. If it does not return straight away, the issue may still be intermittent, so I would continue monitoring rather than declaring the vehicle fixed.

For workshop use, I would keep a simple record for each vehicle: the date of the visit, the warning symptoms, the initial codes, what was inspected, and what changed after clearing or repair. The app becomes much more valuable when paired with that discipline. Without a record, repeated scans can become a series of disconnected snapshots that are difficult to compare.

One non-obvious limitation is that convenience can hide uncertainty. A clean-looking result may reflect a temporary condition, a sleeping module, or a connection that did not reach every system available on that vehicle. I treat a scan as one stage in a diagnostic process, not as an automatic verdict. That mindset prevents the most expensive misuse of an otherwise useful tool.

When the vehicle, not the app, is responsible

Some problems sit outside the phone entirely. A weak vehicle battery can create strange electronic behavior, interrupted communication, or multiple unrelated codes. If the car has trouble starting, lights dim noticeably, or several systems complain at once, I would address the vehicle’s power condition before judging the diagnostic session.

The diagnostic connector itself can also be the culprit. Dirt, damage, loose pins, or previous installation work may prevent reliable communication. If the hardware loses contact when the cable is touched, I would stop moving it around and inspect the connection safely rather than repeatedly forcing new scans.

Vehicle-specific differences matter too. A generic expectation that every car will offer the same systems, menus, or depth of information is unrealistic. Older vehicles, unusual configurations, and cars with aftermarket electrical changes may behave differently from a straightforward modern passenger car. In those cases, a professional technician with manufacturer-specific knowledge may be a better choice than trying to make the app explain everything.

I would also be careful with intermittent faults. If a warning appears only after rain, a cold start, a long drive, or a particular load, a single successful scan may miss the event. Note the conditions and scan when the symptom is present if it is safe to do so. The app can help capture information, but it cannot recreate a fault that is not currently visible to the vehicle’s systems.

Safety is the boundary I would not cross. I would not use a phone while driving, test uncertain repairs in traffic, or clear serious warnings simply to remove an icon from the dashboard. XTOOL’s app belongs in a parked vehicle, a controlled workshop, or a driveway where the user can concentrate on the connection and the vehicle’s behavior.

Who will get the most from it

This is a good fit for a DIY owner who is comfortable following a careful process and wants more information before visiting a repair shop. It can help you arrive at a conversation with a mechanic prepared, especially when you have preserved the original warning and can describe when it appeared.

It also suits technicians who already work with XTOOL equipment and want a mobile interface rather than a separate dedicated screen for every basic check. The free price removes an obvious barrier to trying the app, although the useful experience depends on having the appropriate diagnostic hardware. In other words, free installation should not be confused with a complete diagnostic setup at no cost.

I would be less enthusiastic for someone who wants a one-tap answer to “what is wrong with my car?” Beginners can use it, but they need patience and a willingness to learn the difference between a stored code, an active symptom, and a confirmed repair. If you dislike troubleshooting connections or do not want to interpret vehicle information, a repair shop may be the more efficient alternative.

Compared with a basic generic OBD reader, this app offers the appeal of a familiar phone-based workflow and a closer relationship with XTOOL diagnostic equipment. A cheap standalone reader may be simpler for someone who only wants occasional engine-code access and does not want to manage an app. On the other hand, a professional workshop platform can be preferable when you need a broader, more standardized service process and do not want to depend on a personal phone.

That comparison is not about declaring one option universally better. The right choice depends on the job. For occasional checks, a simple reader may be enough. For regular work with compatible XTOOL hardware, this app is the natural interface. For complex faults or safety-critical systems, experienced human diagnosis remains more important than the screen used to display the information.

Small habits that make the experience better

I would keep the phone charged before starting, but I would also pay attention to the vehicle’s battery rather than assuming the phone is the only power source that matters. I would avoid unnecessary ignition cycles, keep the diagnostic cable still, and allow each connection stage to finish before moving to another menu.

I would photograph warning lights and note the exact driving conditions. “The light came on after a short cold trip” is more useful than “the app found a code.” If the vehicle is being inspected by someone else later, those details give the technician context that a scan result alone cannot provide.

Finally, I would update the app responsibly but avoid changing several parts of the setup at once. If a problem appears after an update, a new phone connection, or a vehicle change, isolate the change before drawing conclusions. That simple habit makes troubleshooting much faster because you know which variable deserves attention.

The app’s Everyone age rating makes it broadly accessible, but that should not be read as a promise that every diagnostic operation is suitable for every user. The interface may be approachable; the consequences of misunderstanding a vehicle fault can still be serious. I would use it as an information tool and respect the limits of my own mechanical knowledge.

My practical verdict

After looking at the complete workflow, I see Xtool Anyscan as a useful companion for people who already have compatible XTOOL diagnostic hardware and want a mobile way to investigate vehicle faults. Its strengths are practical: it is free to install, works on Android 7.0 and later, and gives DIY users and technicians a structured place to begin a diagnostic session.

The friction is equally practical. The app cannot compensate for a weak car battery, a poor connector, an incorrect vehicle selection, unsuitable hardware, or a fault that is not currently active. Users who expect a universal, instant diagnosis may come away disappointed. Users who approach it as one part of a careful inspection are much more likely to find it worthwhile.

Developed by XTOOL, the app has been available since June 25, 2023, and its current version is 4.40.61. Those details matter mainly because they help you check that your phone and installation match the intended environment before troubleshooting deeper issues.

My recommendation is straightforward: choose it if you want a phone-based interface for compatible XTOOL equipment and are willing to preserve evidence, check the physical setup, and interpret results carefully. Skip it if you only need a very simple occasional code read, do not own compatible hardware, or would rather leave all diagnosis to a professional. Used with realistic expectations, it can make the first stage of car troubleshooting clearer without pretending to replace the rest of the job.
